What are Graphics Card Slot Types? GPU Width Differences | Video Card Specs

Graphics cards are essential components of a computer system. They provide the power and capabilities needed to render visuals on-screen. Each graphics card has a design with a physical slot type, which determines by its bus width.

There are two major GPU width types: full-length and half-length.

Full-length graphics cards are wider than half-length cards. Larger slot size in the system’s motherboard.

Generally speaking, full-length slots will support both half-length and full-length graphics cards. While half-length slots can only accommodate half-length cards.

Related Reading:

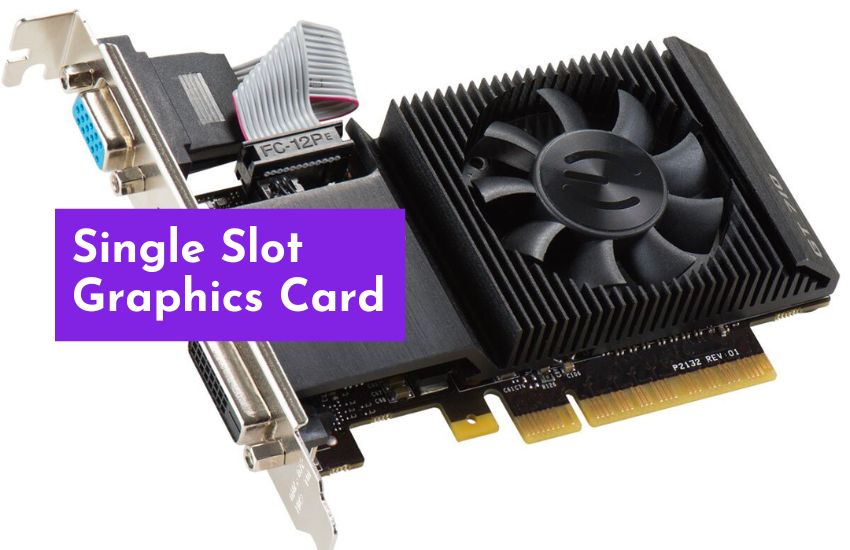

What is a Single Slot Graphics Card?

A Single Slot Graphics Card (or Single Slot GPU) is a type of graphics card that only takes up one slot on the motherboard. It’s designed to provide superior graphical performance.

Without sacrificing too much space in the PC. A single-slot GPU has a lower power consumption and generates less heat.

What is a Single Slot Graphics Card?

As it compares to a traditional dual-slot GPU makes. It is ideal for PCs with limited space or cooling capabilities. The EVGA GeForce GTX 1060 3GB Single Slot Graphics Card is a great example of this type of card.

You offered an impressive spec sheet with 768 CUDA cores, 1.5 GHz base clock speed, and 8 GB GDDR5 memory. With this card, you can upgrade your PC’s graphics processing capabilities

Without having to worry about taking up too much room. You need an available PCIe slot, and you’re good to go!

What is a 1.5 Slot GPU?

A 1.5 Slot Graphics Card is a type of graphics card that occupies two physical slots on the motherboard. The card consists of two components: a GPU and a PCIe slot, which contains the GPU.

This type of card provides more space for cooling. Which also allows it for better performance than a traditional single-slot graphics card.

EVGA is one of the leading manufacturers of 1.5-slot GPUs. It offers cards such as the GeForce GTX 1060 2GB GDDR5 model.

What is a 1.5 Slot GPU?

This particular card gives you great performance in general gaming. The advanced features like VR support and DirectX 12 support. It also comes with an attractive design and a low price point.

It makes it an ideal choice for PC gamers everywhere. If you’re looking to upgrade your PC and take advantage of all the latest technology.

So, investing in a 1.5-slot GPU may be what you need!

Related Reading:

What is a Dual Slot Graphics Card?

A dual slot GPU is a type of PCI-E slot GPU requiring two motherboard slots. This card type has two GPUs, which can handle more complex graphic tasks.

It also provides better performance and cooling solutions than other expansion slots.

Dual-slot graphics cards are often used by gamers who need the most graphical power. Professionals need powerful graphics capabilities for their work. They usually occupy two slots on the motherboard.

What is a Dual Slot Graphics Card?

Further, they need extra power from the motherboards’ extra power connectors. Different types of dual slot cards are available, such as AMD Radeon or Nvidia GTX series cards.

Each offers different levels of performance and features of the dual-slot graphics card. Make sure your current motherboard has enough available slots to accommodate.

What Are 2.5 and 2.7 Slot Graphics Cards?

2.5 and 2.75 slot graphics cards are GPU designed to fit into specific PCI-E slots on motherboards.

These cards, also known as slot GPUs, are often larger than standard single-slot GPUs. They can use to upgrade the graphic capabilities of a PC.

Popular brands such as EVGA, Geforce and RTX make 2.5 and 2.7 slot graphics cards. It comes in different specs depending on the model.

What Are 2.5 and 2.7 Slot Graphics Cards?

They offer higher performance than single-slot GPUs due to their larger size.

Additionally, some triple-slot models are available. It provides even more power for gaming or other intensive applications.

When selecting a 2.5 or 2.75-slot GPU, it is important to check the expansion slots on your motherboard. To ensure compatibility with the spec of the card you wish to buy.

Related Reading:

What is a (3 Slot) Triple Slot Graphics Card?

A Triple Slot Graphics Card is a type of graphics card that takes up three expansion slots on a motherboard.

It is usually used for high-end gaming or professional workstation PCs. This type of graphics card has two GPUs (Graphics Processing Units).

They need three PCIe slots, which can be on higher-end motherboards. The most popular triple-slot GPU is the ASUS GeForce GTX series. It provides exceptional performance and stability.

What is a (3 Slot) Triple Slot Graphics Card?

With this graphics card, you can run many GPUs in parallel. It allows them for improved performance when running intensive applications.

Additionally, the triple slot GPU design allows for better cooling and more efficient power distribution. A triple-slot graphics card is ideal for those needing extra performance.

What Does GPU Clearance Mean (Nvidia, AMD e.g)?

GPU clearance refers to the amount of space available for a graphics card in a PC case. It is usually measured as the number of PCIe slots available.

Further, it can range from single-slot to triple-slot GPUs. Dual-slot graphics cards use two slots and take up more space than single-slot GPUs.

Triple-slot GPUs are even bigger and need three PCIe slots. Depending on the specs of your PC case, you may need more GPU clearance for certain models.

For example, an AMD RX XT or an ASUS AIOS water-cooling card. Both would need more clearance than a standard dual-slot graphics card. The amount of power needed by these cards also affects their size.

So you should always check the manufacturer’s spec sheet before purchasing one. You may need more cooling solutions if you need more GPU clearance in your PC case.

Such as extra fans or liquid cooling systems. It makes sure that your components stay cool during operation.

Related Reading:

How Can I Check the GPU Clearance of My PC Case?

When checking the GPU clearance of your PC case, there are a few important things to consider.

You should check the specs of your graphics card to determine its size and whether it is a triple-slot card. This will give you an idea of how much clearance you need to fit the card into your PC case.

You should also check for compatibility with the side panel of your case. Some cases must have up to 60mm of clearance to accommodate larger GPUs such as the Radeon RX series.

Finally, measure the interior dimensions of your PC case. Compare them with the specs of your graphics card before buying. Ensure that there is enough clearance for installation.

Will the Size of my GPU affect my ability to Install it on the Motherboard?

When it comes to installing a GPU, the size of the graphics card does matter. GPUs come in various sizes, from small and compact cards to large and powerful ones.

Depending on the size of your GPU, you may need to make sure that it can fit into one of your computer’s expansion slots. If you have a larger GPU, it may not fit into a smaller slot on your motherboard.

Additionally, if you are using an All-in-One (AIO) water-cooling system for your GPU. You will need to ensure that the cooling system is compatible with the size of your graphics card.

Sometimes, larger GPUs may need more elaborate cooling systems than smaller ones. Ensure it fits your computer’s slots and cooling system.

Related Reading:

What Size Case do I Need for my Graphics Card?

Several variables affect what size graphics card case you need. First, you should determine the type of GPU you use, whether it is an Nvidia RTX or AMD Radeon RX.

Then you will need to ensure that your PC case has enough expansion slots to accommodate it. If your PC case needs more expansion slots, you will need to buy a larger one.

When selecting a PC case for your graphics card, make sure it is compatible with your GPU and AIOs.

Finally, consider the length and width of the graphics card when selecting a PC case. Make sure there is enough room to fit into a slot without any issues.

Consider all these factors when purchasing a new PC case for your GPU. You can ensure compatibility and optimal performance from your system.

Why does your graphics card matter in video memory?

Your graphics card is a very important component of your PC. It renders visuals and provides the best possible gaming experience.

GPUs are the main components of graphics cards. They can range from low-end to high-end models. A powerful GPU can handle more complex graphics and provide better visuals than a weaker one.

It’s important to do a bit of research and pick the right graphics card for your needs. Nvidia and AMD are two popular brands when it comes to GPUs.

The GeForce RTX and Radeon RX series are some of the most popular choices among gamers. Investing in a good graphics card is essential if you want your PC to run games and look great at the same time.

Why Are GPUs Getting Bigger?

GPUs (Graphics Processing Units) are getting bigger and better than ever. This is due to the introduction of RTX cards by NVIDIA. It has revolutionized the gaming industry.

The RTX 3080 is the most powerful graphics card available on the market. We are offering up to 10 times more power than its predecessors.

RTX 3080

As a result, these power-hungry GPUs need larger heatsinks with triple-slot designs to keep them running cool.

This means that to fit all the components necessary for an RTX card, GPUs are now much bigger than they used to be. With this increase in size comes an increase in performance as well.

That allows gamers to experience higher frame rates and smoother gameplay.

All in all, GPUs are getting bigger because of their increased capabilities. They demand from gamers who want the best performance possible.

Will Graphics Cards Keep Getting Bigger in the Future?

Graphics cards will continue to get bigger according to technology. Graphics cards are essential components of a PC. They allow us to play games and render images with high fidelity.

The latest graphics cards from companies like Nvidia and AMD feature powerful GPUs. These GPUs consume more power and need larger cases to fit in.

As time passes, GPUs will become powerful and need even more space in our PC cases. This means that graphics cards will keep getting bigger in the future. That allows us to enjoy more immersive gaming and graphical experiences.

We can expect even more advanced GPUs. Likely, they’ll also become even more powerful at the same time.

What Can I Do to Have a Smaller GPU?

If you want to have a smaller GPU, one of the best options is to look at ASUS GPUs. ASUS is one of the leading manufacturers of GPUs, and they offer a wide range of sizes and models.

For example, their RTX series offers high-performance gaming. ASUS provides lower-end GPUs that nonetheless function well.

You need it without compromising space if you want something even smaller. There are mini versions of some ASUS GPUs that offer great performance.

No matter what size or model you choose, an ASUS GPU will give you the performance. You need it without taking up too much space.

Related Reading:

What is GPU Memory bandwidth?

GPU Memory Bandwidth measures the amount of data that can transfer between the GPU. It’s onboard memory.

It measures in megabytes per second (MB/s) and is an important factor when selecting a GPU. The type of memory used by GPUs varies, with most modern cards using GDDR5 or GDDR6 VRAM.

GPUs from Nvidia, such as the RTX series, usually have higher bandwidth. This allows them to process more data faster, resulting in better performance.

Cuda cores boost to speed but not memory bandwidth. Higher-end Nvidia RTX cards have higher memory bandwidth than their mid-range counterparts.

That allows them to handle more complex tasks faster and at higher resolutions. The memory bandwidth will determine how well a GPU can perform certain tasks.

So it’s essential to understand when selecting one for your setup.

How to optimize models for lower memory bandwidth usage?

Optimizing models for less memory bandwidth is key to application success. Memory bandwidth is the amount of data that can transfer from VRAM to the processor within a given time.

To reduce memory bandwidth usage, ensure all textures are compact and compressed. We are reducing the number of draw calls by combining objects into one larger thing.

It will help reduce the amount of data processed. Using texture atlases or texture arrays can reduce the amount of data required.

Related Reading:

What is a Low Profile Graphics Card?

A Low Profile Graphics Card is a type of graphics card designed to fit into a smaller form factor. We are taking up less space than regular-sized GPUs.

This makes them ideal for small form-factor computers. Or those that have limited space for expansion. Low-profile graphics cards are installed in a dedicated slot on the motherboard. They connect to the GPU via an external connection.

What is a Low Profile Graphics Card?

They usually feature a lower power consumption than their larger counterparts. They can use for basic computer tasks such as web browsing and video playback.

While they may not be suitable for gaming or more intensive tasks. The low-profile graphics cards are perfect for everyday computing needs.
